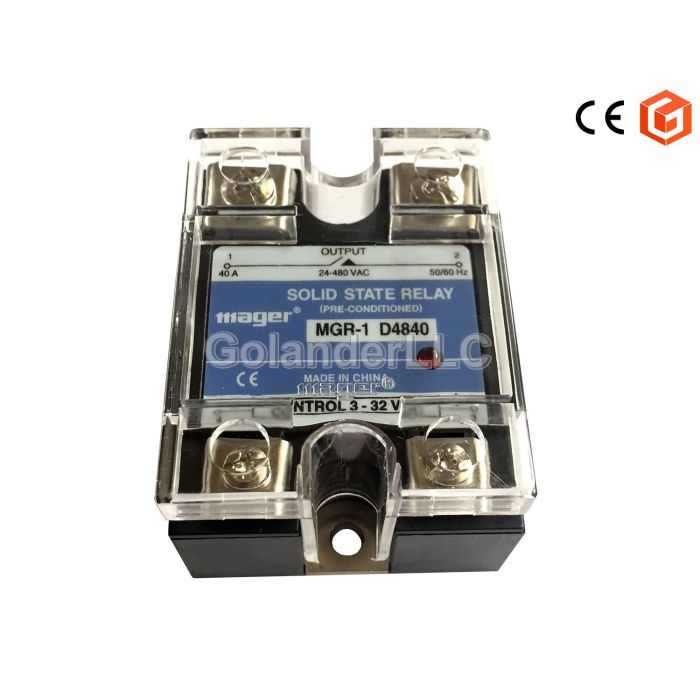

40A DC-AC SSR

$11.50
In stock
SKU
MGR-1D4840

It's for switching AC power source from 24V to 480V. The control signal is 3-32V DC. Maximum AC current 40A. Please note it needs a heatsink to work with it.

Description 40A SSR
Manufacture Golander
Manufacture’s Part Number GL-DA40
Input Voltage 3-32VDC
Input Current DC3-25mA
Output Voltage 24-480VAC
Current Rating 40A
Output Triac
On Voltage ≤1.5V
Off Leakage Current ≤2mA
On-off Time ≤10mS
Dielectric Strength 2500VAC
Insulation Resistance 1000MΩ/500VDC
Ambient Temperature -30~+75 ℃
Switch method zero-cross turn on
Dimension 2.25 x 1.75 x 1.25 (inch) , 57 x 32 x 45 (mm)
Weight 90g
Approval CE




Note: To test an SSR, the easiest way is to use a bulb. Please check the following video. A multimeter won't help since there's a small current leakage even if the output of the SSR is open.

Youtube video link.



More Information
SKU MGR-1D4840
