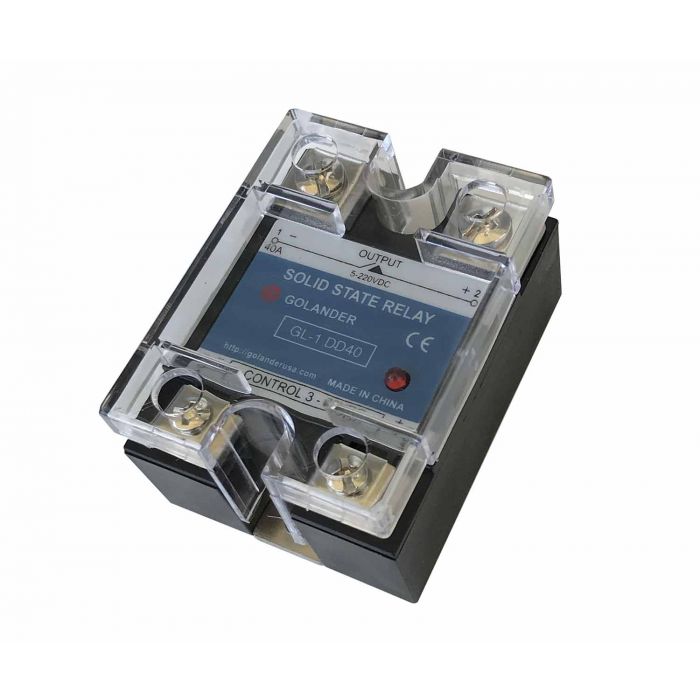

40A DC-DC SSR

$15.90
In stock
SKU
GL-1DD40

It's for switching DC power source from 5V to 220V. The control signal is 3-32V DC. Maximum current 40A. Please note it may need a heatsink to work with it.

Description 40A DC-DC SSR
Manufacture Golander
Manufacture’s Part Number GL-1DD40
Input Voltage 3-32VDC
Input Current DC 5-25mA
Output Voltage 5-220VDC
Current Rating 40A
On Voltage ≤1.5V
Off Leakage Current ≤2mA
On-off Time ≤10mS
Dielectric Strength 2500VAC
Insulation Resistance 500MΩ/500VDC
Ambient Temperature -30~+75 ℃
Dimension 2.25 x 1.75 x 1.25 (inch) , 57 x 32 x 45 (mm)
Weight 90g
Approval CE



The DC SSR is useful for switching DC operated device such as thermal electric cooler (TEC) or DC fans. It provides longer life time than the electromechanical relay.
